Focus Contour Projector

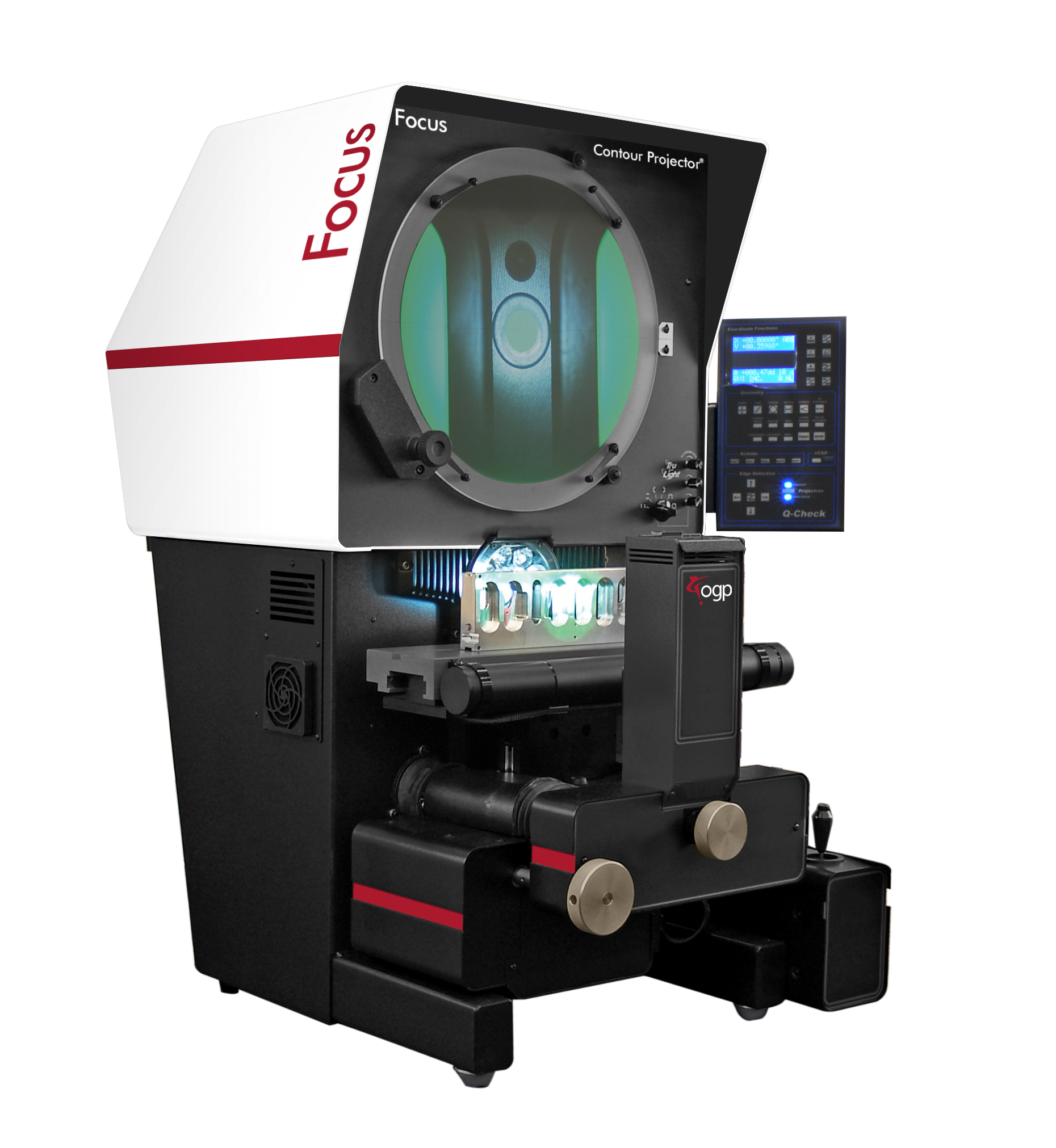

The OGP Focus Contour Projector combines the simplicity of a traditional optical comparator with advanced digital measurement capabilities. Designed for fast and accurate profile inspection, it delivers high-resolution edge detection, precise dimensional measurements, and user-friendly operation. Ideal for manufacturing, machining, medical, aerospace, and quality control environments, the Focus Contour Projector helps operators quickly verify part dimensions and geometric features while improving inspection efficiency and measurement consistency.
| Specification | Details |
|---|---|
| Model | OGP Focus™ Contour Projector® |
| Screen Size | 16″ diameter screen with 14″ viewable area |
| XY Travel (Standard) | 12″ x 5″ (305 x 127 mm) |
| XY Travel (Optional) | 15″ x 5″ (381 x 127 mm) |
| Magnification Options | 10X, 20X, 31.25X, 50X, 100X |
| Lens Turret | 3-position internal lens turret |
| Profile Illumination | TruLight® LED profile illumination |
| Surface Illumination | Optional coaxial and oblique LED lighting |
| Helix Angle Range | ±6.5° with pivoting worktable assembly |
| Z Focus Travel | 1.5″ precision fine adjustment |
| XY Resolution | 0.00004″ standard, 0.00002″ optional |
| Worktable | Hard-coat anodized aluminum with fixturing slot |
| Drive System | Manual or optional motorized variable-speed stage |
| Video Measurement | Optional VidiProbe™ video measurement system |
| Software Options | SNAP-X®, e-Chek®, Measure-X® 2D |
| Applications | Profile inspection, dimensional measurement, first article inspection, quality control |
