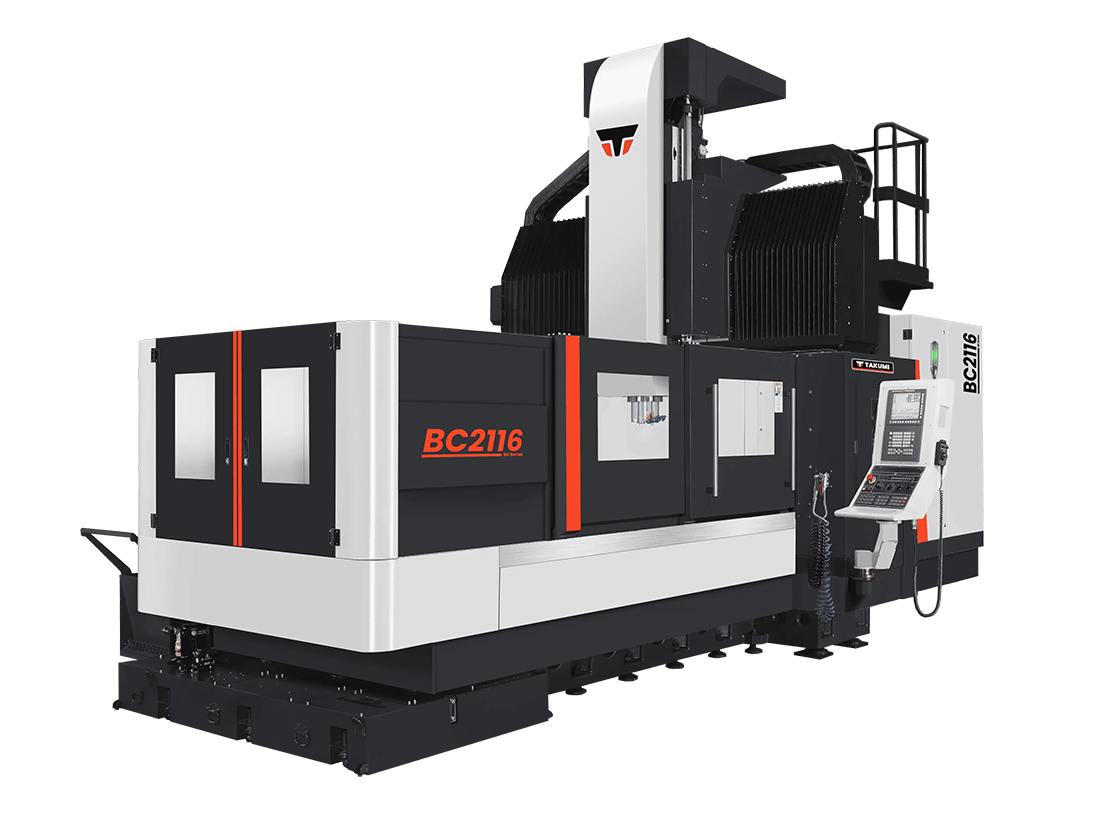

Takumi BC2116
These specs provide a clear overview of the BC2116’s large working envelope, heavy cutting capability, and robust construction for machining large parts and precision dies/molds.
| Takumi BC2116 3-Axis Double Column Machining Center – Specifications | |
|---|---|
| Travel – X Axis | 82.6 in (2100 mm) |
| Travel – Y Axis | 62.9 in (1600 mm) |
| Travel – Z Axis | 31.5 in (800 mm) |
| Distance from Spindle Nose to Table | 7.87–39.37 in (200–1000 mm) |
| Table Size | 78.7 × 59.0 in (2000 × 1500 mm) |
| Table Max. Load | 17637 lbs (8000 kg) |
| T-Slot Size | 0.87 in (22 mm) |
| Spindle Speed | 6000 rpm |
| Spindle Power | 34.9 HP – 30 min rating |
| Spindle Taper | BT 50 |
| Peak Spindle Torque | 601.8 ft-lb – 30 min rating |
| Rapid Traverse (X/Y/Z) | 944 / 944 / 590 ipm (24 / 24 / 15 m/min) |
| Cutting Feed Rate | 393.7 ipm (10000 mm/min) |
| Electrical Power Consumption | 55 kVA |
| Voltage / Power Supply | 220–240 VAC |
| Machine Net Weight | 52900 lbs (24000 kg) |
