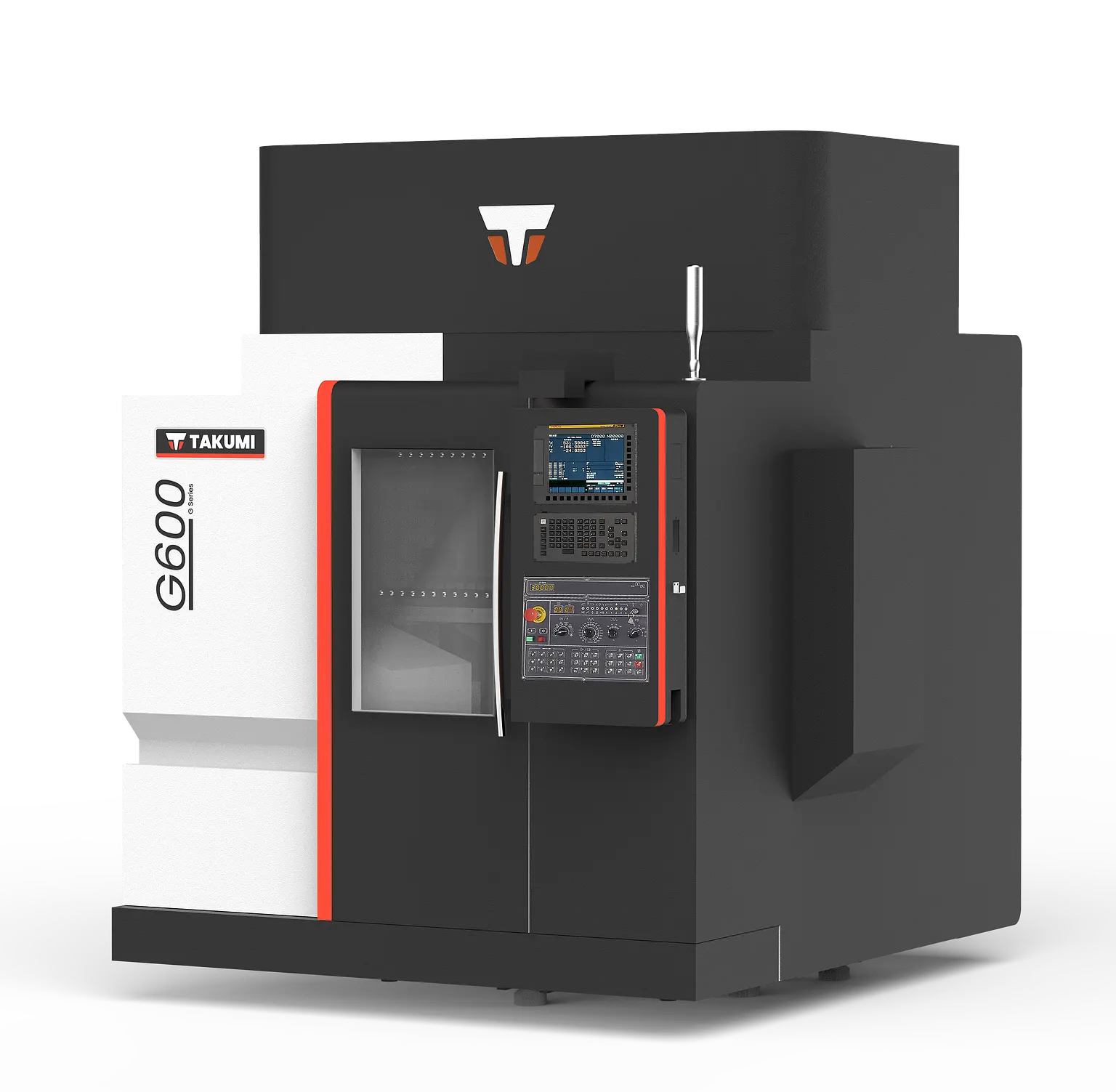

Takumi G600
The Takumi G600 Graphite Machining Center delivers high-speed, high-rigidity graphite milling performance with an optimized vacuum dust collection system and robust structural design. Its built-in high-speed spindle, precise linear drives, and heavy-duty construction make it ideal for graphite electrode production, EDM consumables, and other abrasive or particulate-producing materials. Enhanced dust extraction and thermal stability support clean operation and excellent surface quality even during demanding production cycles.
| Takumi G600 Graphite Machining Center – Specifications (U.S. Units) | |
|---|---|
| X-Axis Travel | 23.62 in |
| Y-Axis Travel | 23.62 in |
| Z-Axis Travel | 13.78 in |
| Distance Spindle Nose to Table | 4.72–18.50 in |
| Table Size | 23.62 × 23.62 in |
| Table Max Load | 1,102 lbs |
| T-Slot Size | 0.55 × 3.94 in slots × 6 |
| Spindle Type | Built-in high-speed |
| Spindle Speed (max) | 30,000 rpm |
| Spindle Taper | HSK-E40 |
| Spindle Motor Power | 13.4 / 16.1 hp (Cont./S6-40%) |
| Rapid Traverse (X/Y/Z) | 1,181 × 1,181 × 1,181 in/min |
| Cutting Feed Rate | 472.44 in/min |
| ATC Type | Umbrella style |
| Magazine Capacity | 20 tools |
| Max Tool Diameter / Next Pocket Empty | 2.95 / 3.94 in |
| Max Tool Length | 7.87 in |
| Max Tool Weight | 3.31 lbs |
| Pneumatic Pressure | ~85 psi |
| Electrical Power Consumption | 30 kVA |
| Machine Net Weight | 12,125 lbs |
| Operating Dimensions (L × W × H) | 110.24 × 144.09 × 105.12 in |
