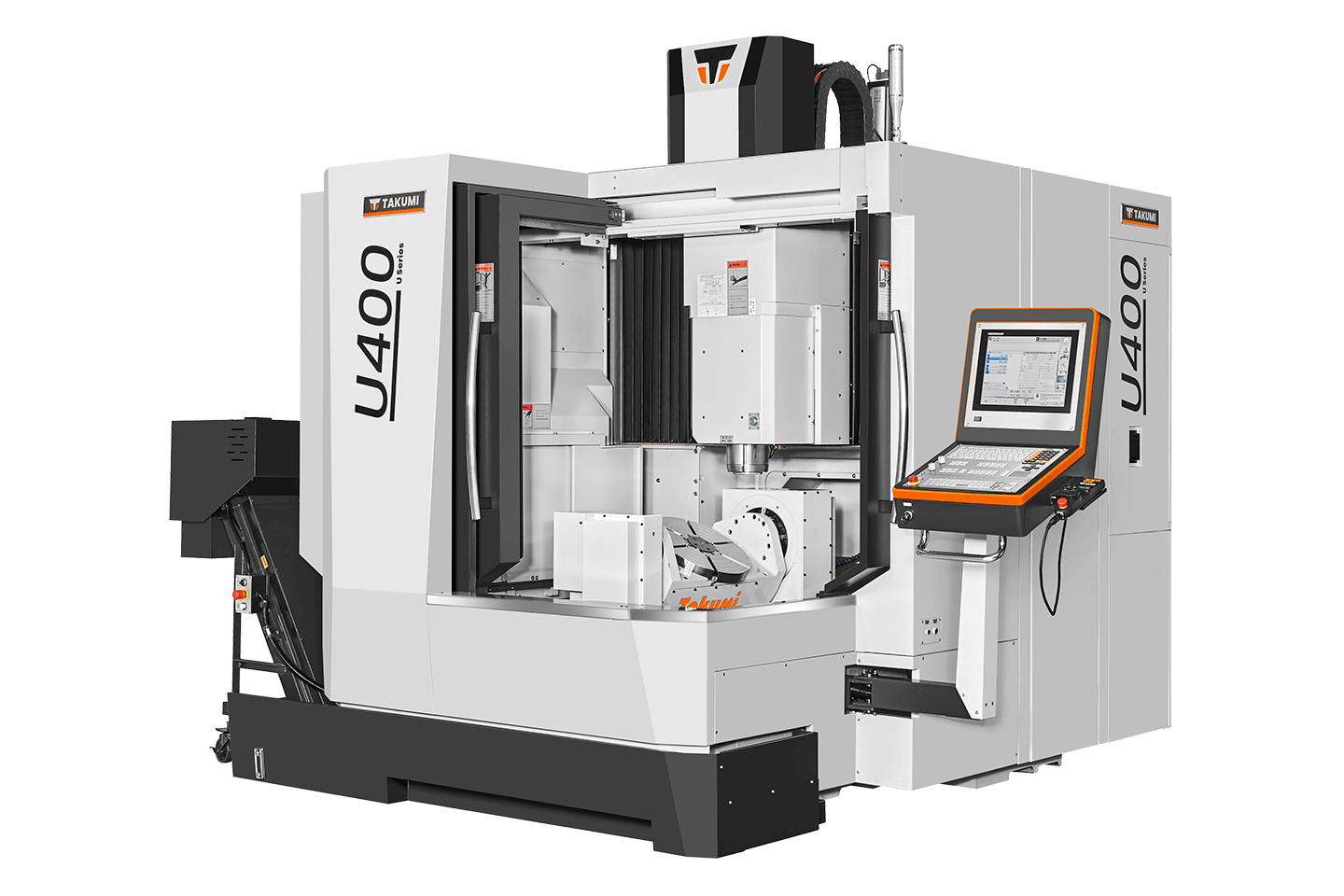

Takumi U400
The Takumi U400 5-Axis Machining Center from Takumi USA combines speed, precision, and rigidity in a compact, high-performance platform. Featuring a 15,000-rpm Big Plus® CAT 40 spindle, 30-bar through-spindle coolant, and rapid traverse rates up to 36 m/min, the U400 is built for complex, high-accuracy parts. With generous travels, a 398 mm rotary table supporting 250 kg, and up to 50-tool capacity, it delivers the productivity and flexibility modern aerospace, medical, and precision manufacturers demand.
|
Takumi U400 5-Axis Machining Center – Technical Specifications |
|
|---|---|
| Control Type | Heidenhein® TNC 640 |
| X-Axis Travel | 580 mm |
| Y-Axis Travel | 950 mm |
| Z-Axis Travel | 500 mm |
| Distance from Spindle Nose to Table | 90–590 mm |
| Table Size | Φ398 mm |
| Table Max. Load | 250 kg |
| T-Slot Size | N°6 WIDTH 14 – 60° |
| Spindle Speed | 15,000 rpm |
| Spindle Power | 18.8 HP (14 kW) |
| Spindle Taper | Big Plus® CAT 40 |
| Peak Spindle Torque | 65.9 ft-lb (89.4 Nm) |
| Through-Spindle Coolant | 30 bar / 435 psi |
| Rapid Traverse (X/Y/Z) | 1417 x 1417 x 1417 ipm (36 x 36 x 36 m/min) |
| Cutting Feed Rate | 787 ipm (20 m/min) |
| ATC Type | Swing Arm |
| Magazine Capacity | 30 or 50 |
| Max. Tool Diameter | 75 / 150 mm (next pocket empty) |
| Max. Tool Length | 300 mm |
| Max. Tool Weight | 8 kg |
| Tool Shank | CAT 40 (BT 40 Optional) |
| Machine Net Weight | 9500 kg |
| Electrical Power Consumption | 60 KVA |
| Pneumatic Pressure | 85.34 psi (6 kgf/cm²) |
| Operating Dimensions (L x W x H) | 3981 x 4730 x 3720 mm |
