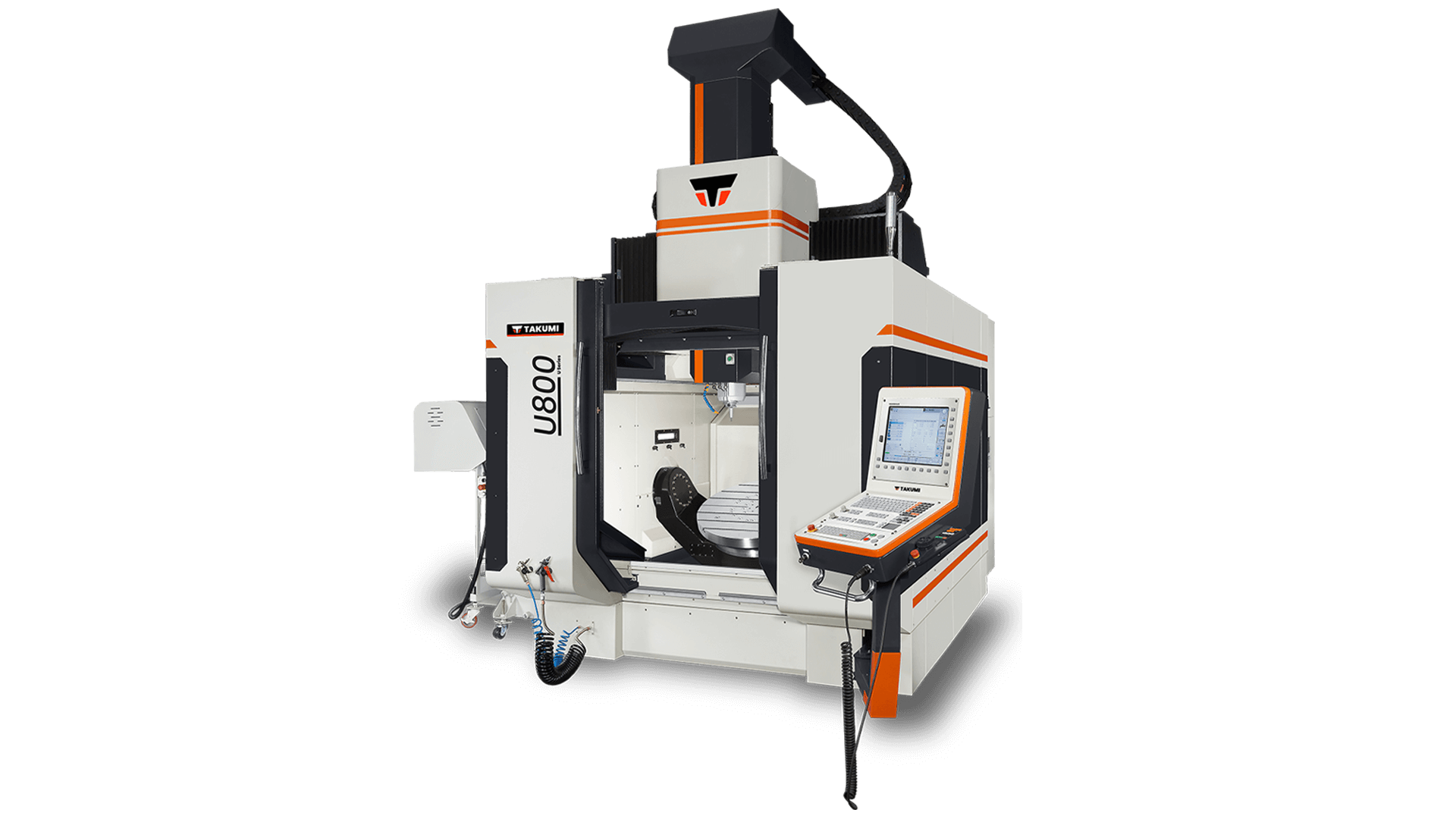

Takumi U800
| Takumi U800 5-Axis Machining Center – Technical Specifications | |
|---|---|
| Control Type | Heidenhein® TNC 640 |
| X-Axis Travel | 799 mm (31.49 in) |
| Y-Axis Travel | 1150 mm (45.28 in) |
| Z-Axis Travel | 749 mm (29.52 in) |
| Distance from Spindle Nose to Table | 125–875 mm (4.92–34.45 in) |
| Table Size | Ø800 mm (31.49 in) |
| Table Max. Load | 1000 kg (2205 lbs) |
| T-Slot Size | 14 x 100 x 7 mm (.55 x 3.94 x .28 in) |
| Spindle Speed | 20,000 rpm |
| Spindle Power | 33.3 HP (25 kW) |
| Spindle Taper | Big Plus® CAT 40 |
| Peak Spindle Torque | 99.5 ft-lb (135 Nm) |
| Through-Spindle Coolant | 30 bar / 435 psi |
| Rapid Traverse (X/Y/Z) | 1890 ipm (48 m/min) |
| Cutting Feed Rate | 945 ipm (24 m/min) |
| ATC Type | Carousel |
| Magazine Capacity | 64 Tools |
| Max. Tool Diameter | 90 / 125 mm |
| Max. Tool Length | 300 mm |
| Max. Tool Weight | 7 kg (15.43 lbs) |
| Tool Shank | HSK-63A |
| Machine Net Weight | 18,000 kg (39,683 lbs) |
| Electrical Power Consumption | 80 KVA |
| Pneumatic Pressure | 85.34 psi (6 kgf/cm²) |
| Operating Dimensions (L x W x H) | 165.35 x 120.28 x 162.20 in (4200 x 3055 x 4120 mm) |
