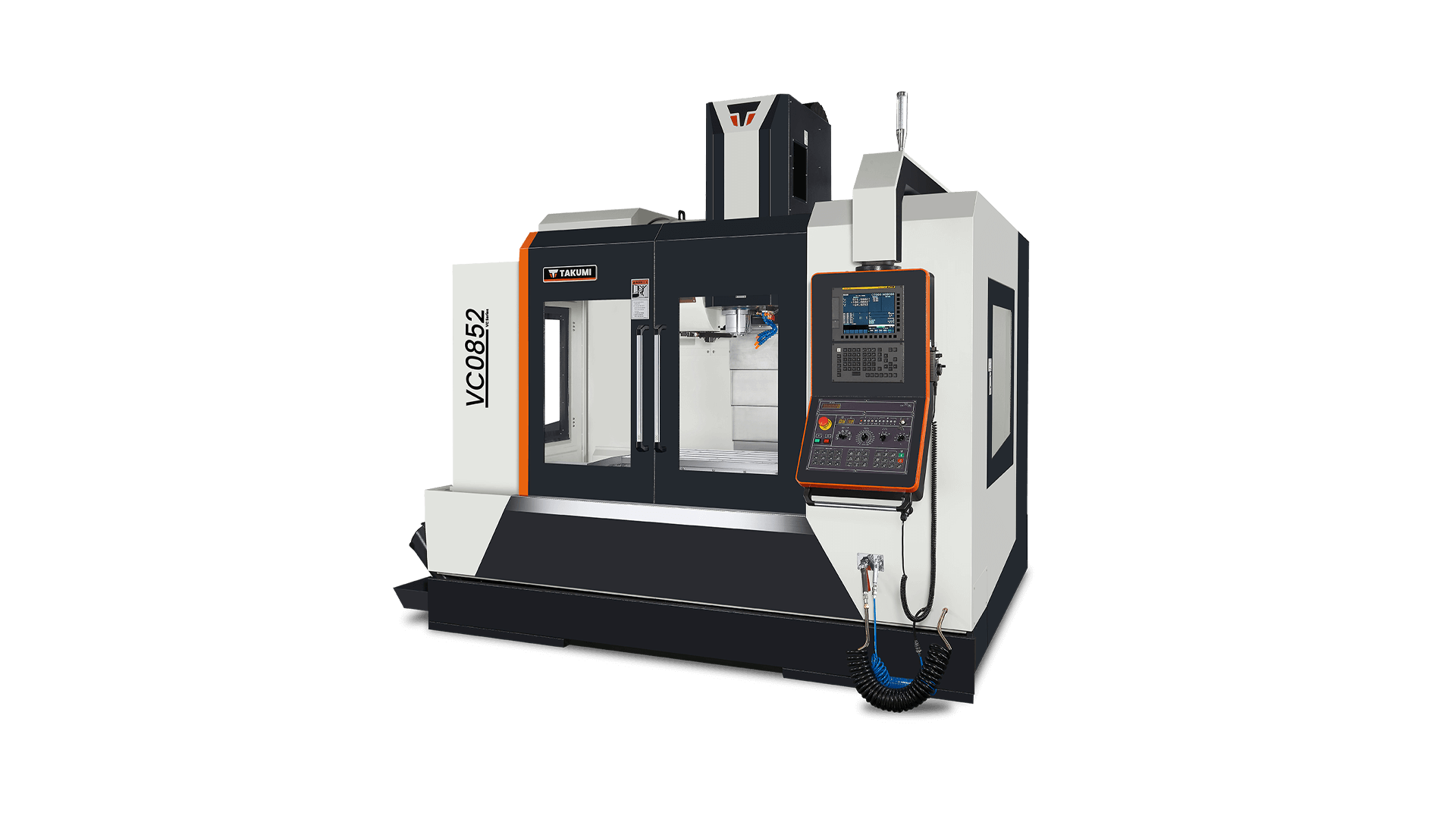

TAKUMI VCX0852
The Takumi VC0852 Vertical Machining Center is a high‑precision, linear‑guide CNC mill designed for batch and production machining with excellent speed, rigidity, and stability. Featuring fast rapids up to 1,417 in/min, a 12,000 rpm Big Plus® CAT 40 spindle, and a 24‑tool swing‑arm ATC, it’s optimized for mold, die, and general high‑productivity work. A robust table with ergonomic setup and advanced Fanuc® 0i‑MF Plus control make this machine a versatile choice for demanding shops.
| Takumi VC0852 3‑Axis Vertical Machining Center – Specifications (U.S. Units) | |
|---|---|
| X‑Axis Travel | 33.9 in |
| Y‑Axis Travel | 20.5 in |
| Z‑Axis Travel | 24.0 in |
| Distance Spindle Nose to Table | 4.53–28.54 in |
| Table Size | 39.4 × 20.47 in |
| Table Max. Load | 1,102 lbs |
| T‑Slot Size | 5 × 0.71 in on 3.94 in centers |
| Spindle Speed | 12,000 rpm |
| Spindle Power | 20.1 HP |
| Spindle Taper | Big Plus® CAT 40 |
| Rapid Traverse (X/Y/Z) | 1,417 × 1,417 × 944 in/min |
| Cutting Feed Rate | 0.04–472.44 in/min |
| ATC Type | Swing Arm |
| Magazine Capacity | 24 Tools |
| Max. Tool Diameter | 3.15 / 5.91 in |
| Max. Tool Length | 11.81 in |
| Max. Tool Weight | 15.4 lbs |
| Machine Net Weight | 12,566 lbs |
| Electrical Power Consumption | 30 KVA |
| Pneumatic Pressure | 85–115 psi |
| Operating Dimensions (L × W × H) | 195.15 × 147.36 × 122.01 in |
