CMZ TD Series Z2200-Z3200 Long Bed Lathe

The CMZ TD Series Z2200–Z3200 CNC lathes are designed for precision turning of long and heavy workpieces, offering exceptional rigidity, accuracy, and productivity. With extended Z-axis travel up to 125.9 inches, these machines are ideal for shaft machining, large components, and demanding production environments. Featuring CMZ’s integrated oil-cooled spindle technology, high-speed live tooling, and robust turret configurations, the TD long-bed series delivers smooth operation, thermal stability, and reliable performance for complex turning and milling applications.

Specification TD Series Z2200 TD Series Z3200
Maximum Turning Diameter 21.65 in 21.65 in
Maximum Bar Capacity Range 2.05 – 7.52 in (model dependent) 2.05 – 7.52 in (model dependent)
Swing Over Bed 37.4 in 37.4 in
Swing Over Cross Slide 28.15 in 28.15 in
Distance Between Centers ≈88.6 in ≈128.0 in
X-Axis Travel 14.96 in 14.96 in
Y-Axis Travel (Live Tool Models) +3.15 / −2.36 in +3.15 / −2.36 in
Z-Axis Travel 86.61 in 125.98 in
Turret Positions 12 / 16 / 20 12 / 16 / 20
Live Tool Power 17.4 HP 17.4 HP
Live Tool Speed 12,000 RPM 12,000 RPM
Axis Acceleration 1 g (≈386 in/s²) 1 g (≈386 in/s²)
Machine Options Tailstock, steady rest, traveling steady Tailstock, steady rest, traveling steady

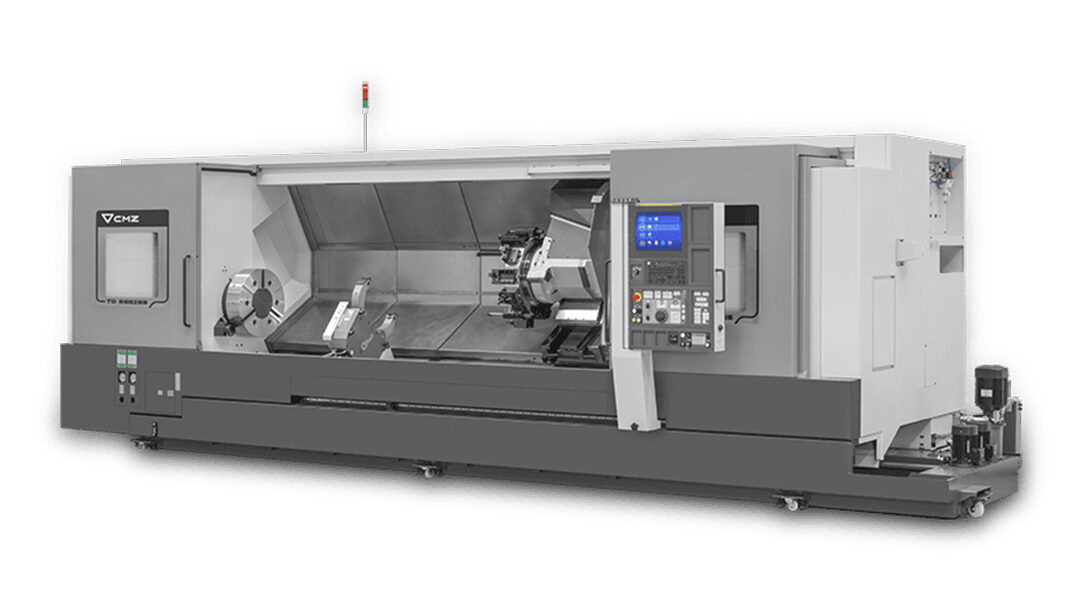

TD-SERIES-Z2200-Z3200
